120W Solar Pathway light

120W Solar Pathway Light

Model:T12

Description

120W Solar Pathway Light

THOR 120W is an perfect answer to be used for main road, it built in high capacity of LifePO4 battery pack and MPPT controller, and providing more than 12000lm which is very good for high poles. 6 hours 100% + 6 hours 50% as default lighting program. It connects to solar panel with universal MC4 connectors and cable is 2.5mm2.

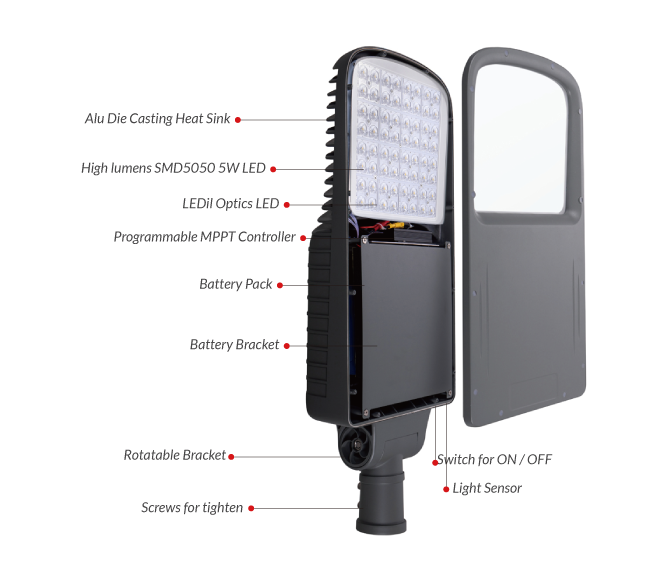

Internal Structure

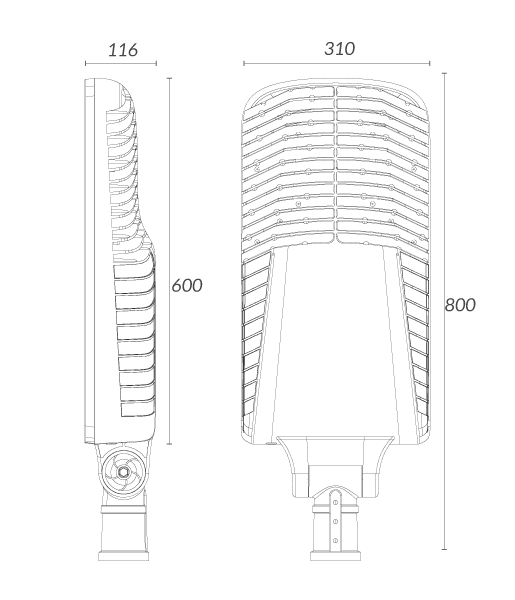

Dimension

Specification

Model number	THOR - T12
LED engine	64nos 5W SMD5050
LED rated power	120W±5%
Luminous flux(lm)	>15,800lm
Color termpature	5500K~6000K
Beam angle	TII / TIII
Regular solar panel	300W 36V
Vertical solar panel	700W (5pcs Q140 36V)
LifePO4 battery	25.6V 1075WH
Charging time	5 hours
Discharging time	>20 hours
Battery lifetime	DOD 100% >2000 cycles
Battery autonomy	2~3 days
Working temp.	-15℃ ~ +70℃
Working mode	6h 100% + 6h 50% sensor
IP rating	IP65

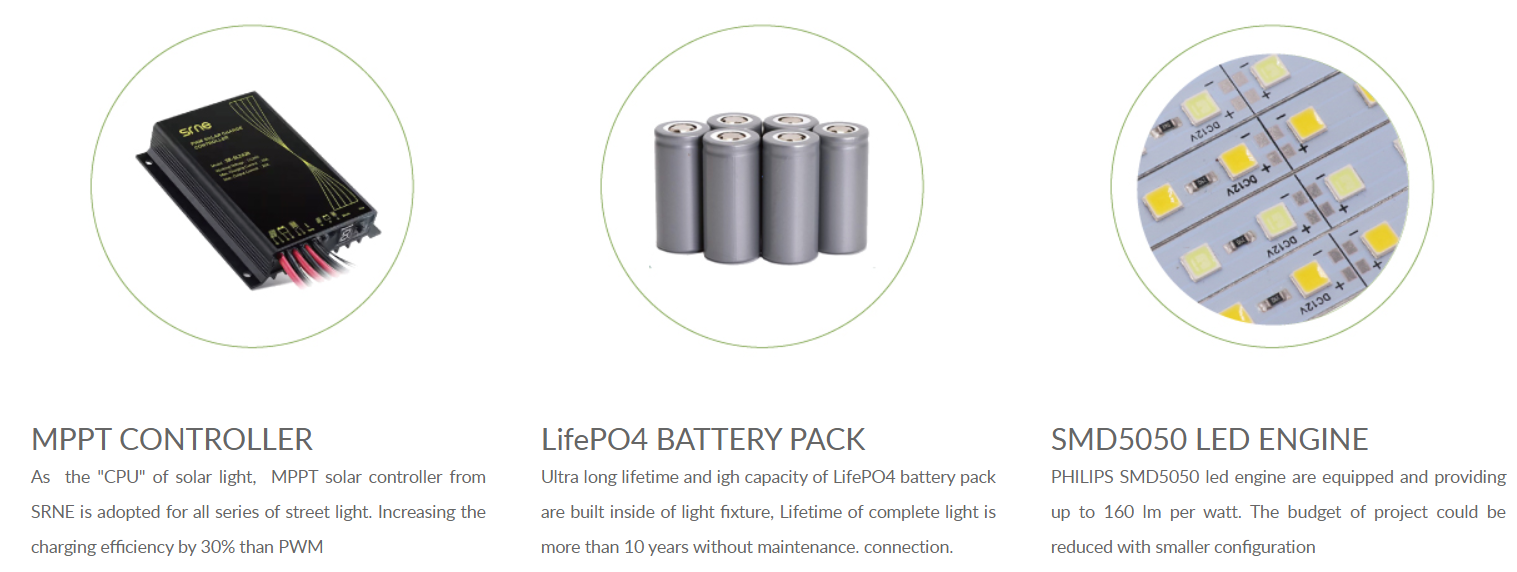

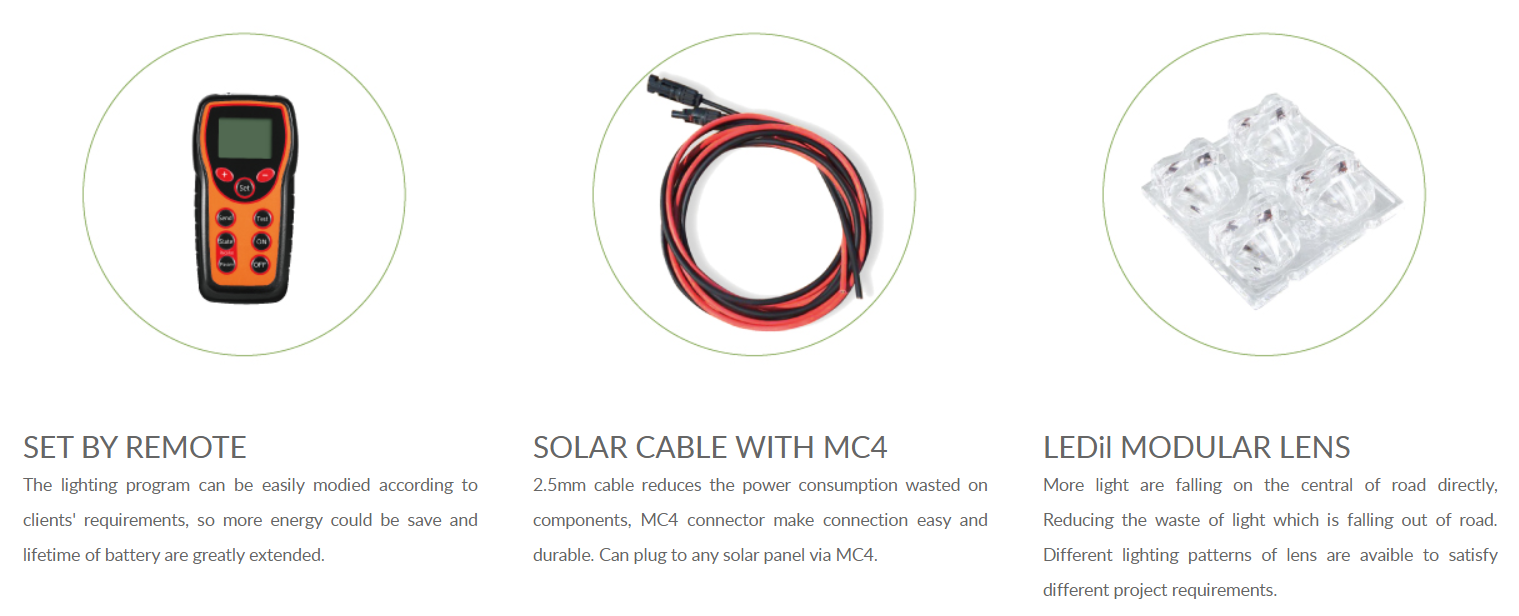

Main Components & Advantages

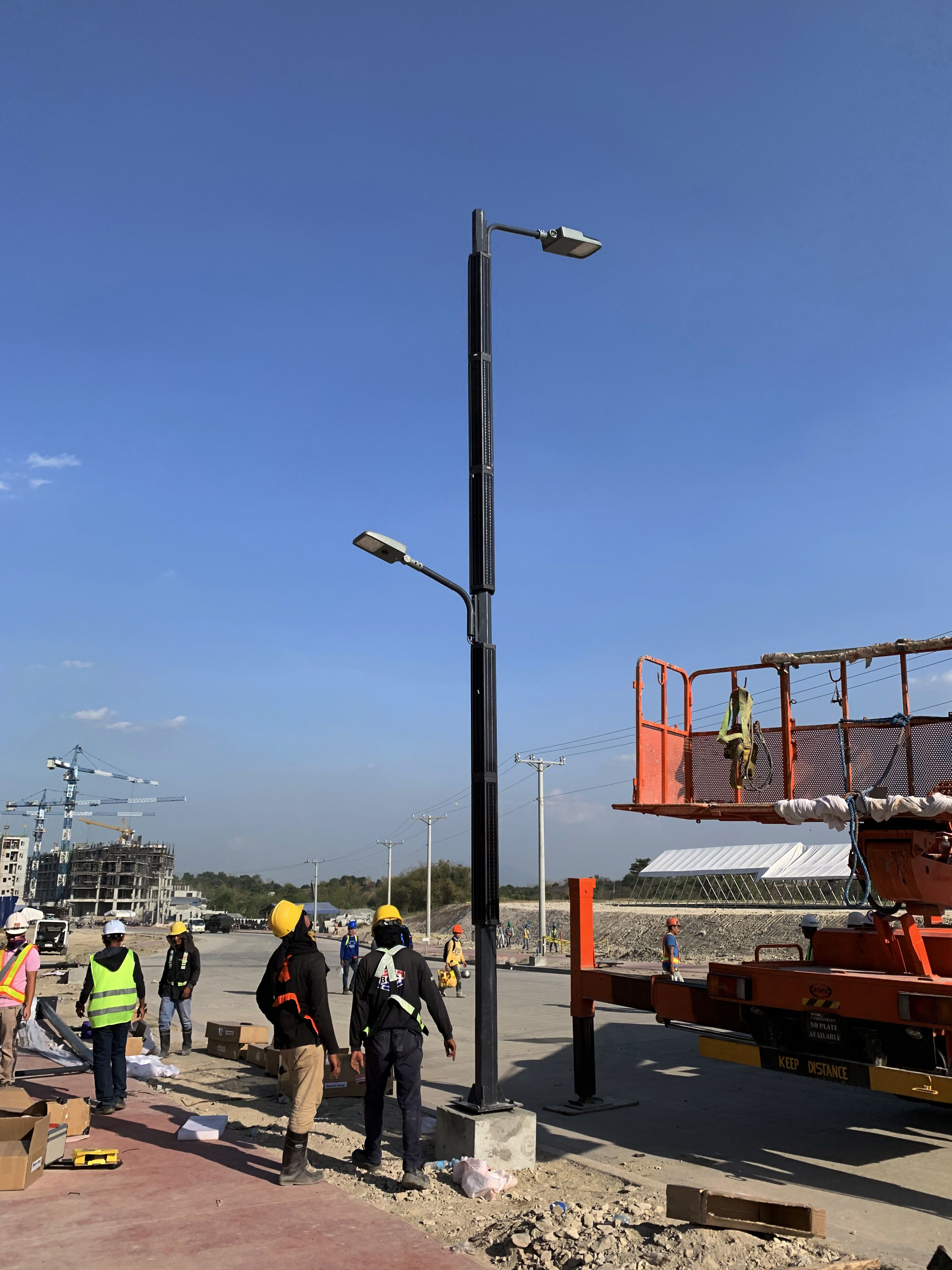

Application
