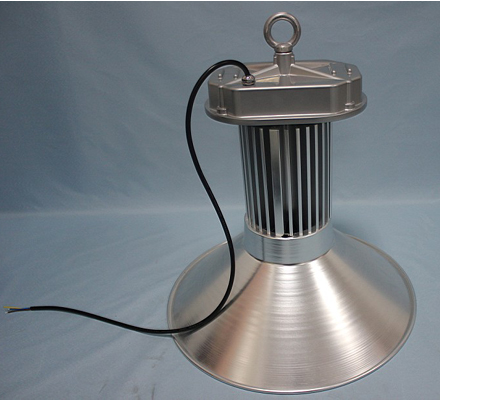

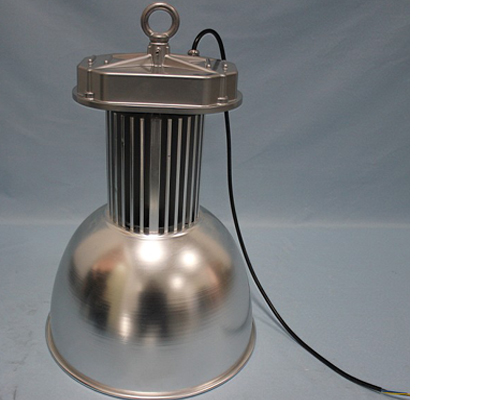

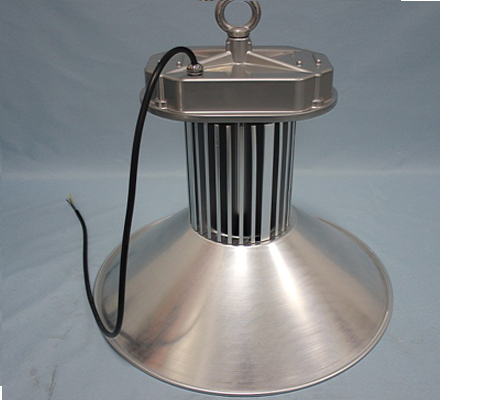

120W LED Highbay Light
Model:ZT-HBL-120W
Power:120W
LED Chip: COB Bridgelux / SMD Cree
Warranty: 3 Years /5 Years
Description
|
120W LED High Bay
|
|
| Input Voltage | 85-265VAC |
| Freqency Range | 50-60HZ |
| Power Factor: | 0.95 |
| Power Efficiency | >0.87 |
| LED Working Voltage | DC30-36V |
| LED QTY | 1PCS Bridgelux LED Chip |
| LED Consumption | 120W |
| System Consumption | 127W |
| LED Luminous Efficeiency | 80-85LM/W |
| LED initial Flux | 8000LM WW |
| 8400LM PW | |
| 8200LM CW | |
| Lamp Efficiency | >80% |
| Average Illuminance | 6m 360lux |
| 8m 204lux | |
| 10m 130lux | |
| Beam Angle | 120°, 90°,45° |
| CRI for CW | RA>75 |
| Working Temperature | -40- +55 Degree |
| IP Grade | IP65 |
| N.W. | 5.6KG |
| G.W. | 6.4KG |
| PACKAGE SIZE： | 470*270*330(mm) |
| The reflector packing Size(（10PCS） |
485*385*485(mm) |
| Color of the lamp shell | Black or Silver |

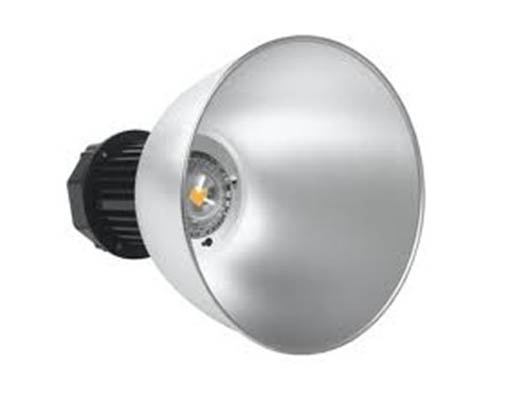

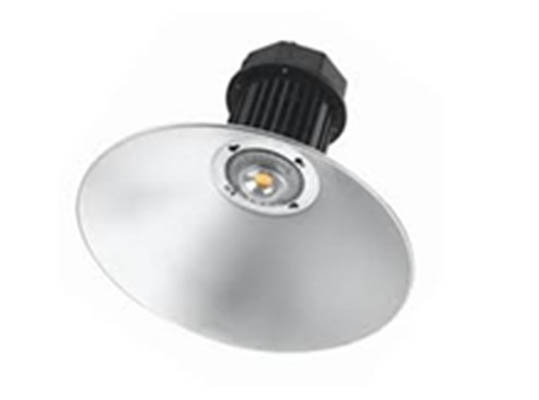

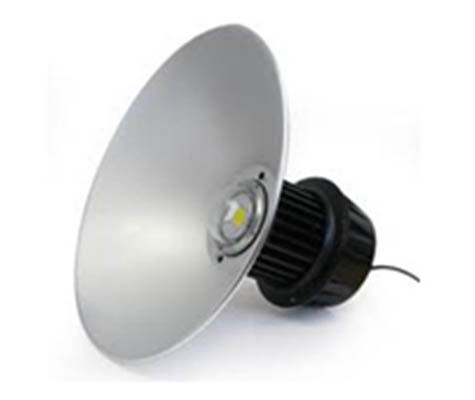

45/90/120 degree Reflector Pictures

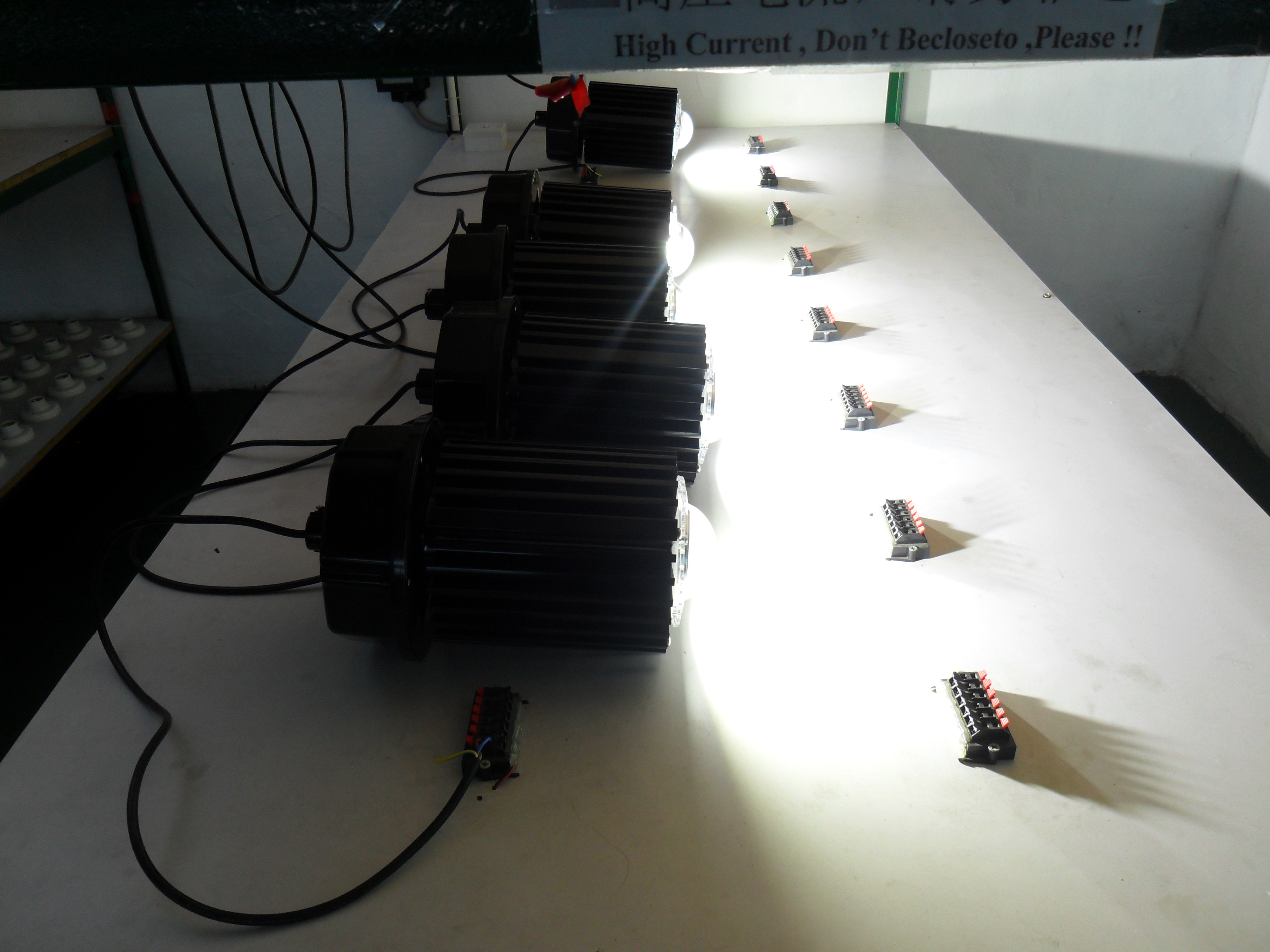

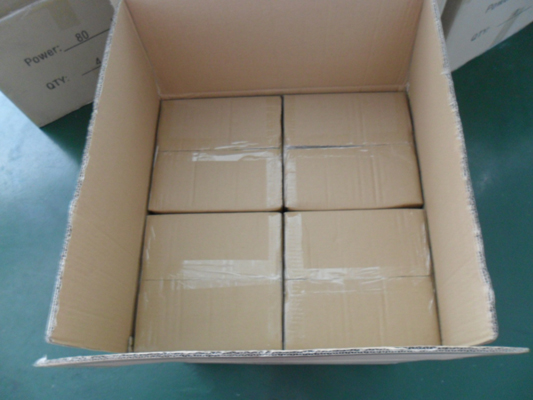

Aging-Testing 4PCS/CTN ( Lamp Head)
